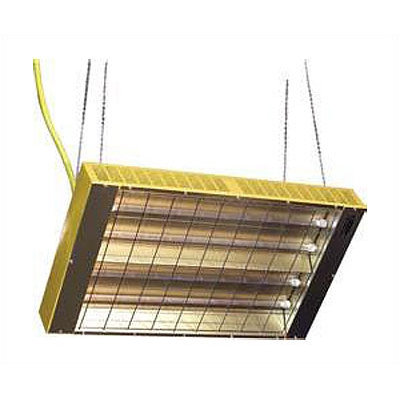

TPI Suspended Quartz Tube Infrared Heater

The Suspended Quartz Tube Infrared Heater is a great way to add warmth to any industrial space during those cold days and nights! UL listed for indoor industrial and commercial comfort heating applications. Note: Suspension mounted only. The heater housing consists of a 20 gauge Galvannealed Steel painted with a "Safety Yellow" power coat finish. Quartz Tube infrared heating element and two seperate toggle switches to allow for dual heat control. Both units include a 15' cord and plug along with a steel grid-type protective guard. The cord types are as follows: CH-2212-1C - NEMA 5-20 molded plug, CH-6424-1C - NEMA L6-30 twist lock plug. Gold Anodized aluminum reflectors, designed with a 45 degree symmetrical heat pattern for a concrentrated distribution of heat. Both are supplied with heating elements, wire guard, and two 4' Jack Chains for suspension mounting.

Features

• UL listed for indoor industrial and commercial comfort heating applications (Note: Suspension mounted only)
• 20 gauge Galvannealed Steel painted with a "Safety Yellow" power coat finish
• Quartz Tube infrared heating element and two seperate toggle switches to allow for dual heat control
• Four bolts are provided to mount and slots are provided for chain suspension (chain and s-hooks included) on the backside of the heater housing
• Both units include a 15' cord and plug, along with a steel grid-type protective guard.
• Gold anodized aluminum reflectors, designed with a 45 degree symmetrical heat pattern for a concentrated distribution of heat
• CH-2212-1C: two 1000 watt Quartz Tube Elements (120v) and NEMA 5-20 molded plug
• CH-6424-1C: four 1425 watt Quartz Tube Elements (240v) and NEMA L6-30 twist lock plug
• Net weight: CH-2212-1C: 16 lbs CH-6424-1C: 31 lbs
