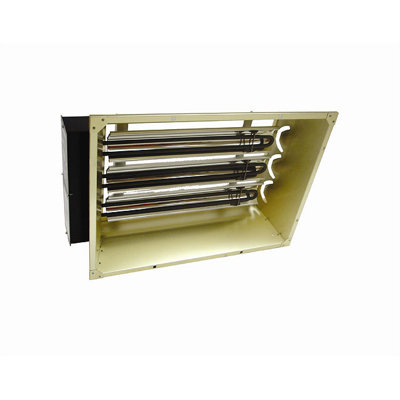

TPI Heavy Duty Metal Sheath 20,478 BTU's Infrared Heater

The Heavy Duty Metal Sheath 20,478 BTU's Infrared Heater is a great way to add warmth to any industrial space during those cold days and nights! Featuring a 60 degree symmetric heat pattern that utilizes bright aluminum reflectors, aluminum extrusions and support clip for high vibration area and rugged environments, and gold anodized aluminum housing for good, long-term reflectivity and corrosion resistence. Heavy duty overhead infrared heaters for indoor spot heating, zone, or total area heating applications. Rugged U-shaped metal sheath elements installed, generates large amounts of infrared radiant energy in a fairly concentrated area. Comes with a terminal box with high-temp silicone wire. UL and CSA listed for suspended high-bay indoor application. Designed for direct wire, single, or three-phase wiring configurations. Units can be operated horizontally or vertically.

Please note, this heater requires direct wire installation by an electrician

Features

• UL and CSA listed for suspended high-bay indoor applications
• High-density radiant heat
• 60 degree symmetric heat pattern utilizing bright aluminum reflectors
• Features aluminum extrusion and support clip for high vibration areas and rugged environments
• Rugged U-shaped metal sheath elements installed, generates large amounts of infrared radiant energy in a fairly concentrated area
• Gold anodized aluminum housing for good, long term reflectivity and corrosion resistance
• "L" brackets included for chain suspension or rigid mounting
• Terminal Box with high-temp silicone wire
• Phase 1 or 3 wiring configurations
• Unit can be operated horizontally or vertically
• Recommended mounting height: 10' to 14'
• Overall dimensions: 7.5" H x 19.9" W x 28.5" D
• Net weight: 27 lbs
