Wayfair Supply > Tools & Equipment > Heating & Cooling > Space Heaters > All Space Heaters > Part #: (3kW Model) HLA 12 - X
SKU #: TPI1464

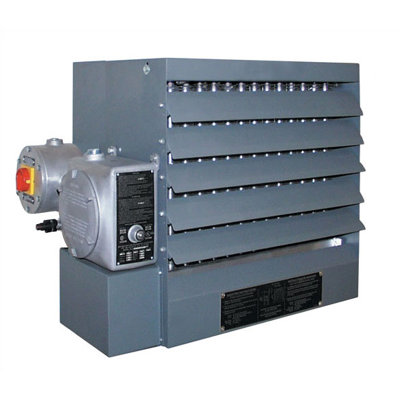

TPI Hazardous Location Fan Forced Unit Heater

(

View all from TPI

)

Write the first review
$4,139.99 (Varies with options)
List Price: $5,215.00
You Save:

$1,075.01 (21%)
rewards ?
Earn $124.20

Free Shipping!
Order in the next and have this item delivered Free by ! More
Delivery Estimates
Like what you see? Configure this item below.Or click here to view more product info.
Guaranteed Delivery By December 24th

Items with the 12/24 Guarantee will be delivered to addresses in the lower 48 states on or before December 24, 2012. This offer does not apply to Alaska, Hawaii, Puerto Rico or Canada.

Any purchase between now and 12/25 can be returned through 1/30.

Share:

Choose From:
Hazardous Location Fan Forced Unit Heater
Hazardous Location Fan Forced Unit Heater
stock status unknown
1 Included
Include Additional Items:
Hanging Mount Kit
TPI Hanging Mount Kit
stock status unknown
+$105.99
Pipe Mounting Kit
TPI Pipe Mounting Kit
stock status unknown
+$268.79
Wall Mount Kit
TPI Wall Mount Kit
stock status unknown
+$234.14
Make it Yours:
Total Price:
$0.00
(0 item(s))

Product Details
Designed for rugged industrial applications in hazardous locations where the possibility of explosion or fire exists due to the presence of certain flammable gases, vapors, powdered metals or dust.

Features:
  • Permanently sealed, liquid to air, finned tube heat exchanger core
  • Ethylene Glycol to water mixture used as a heat transfer fluid in the heater core, providing -49°F (-45° C) freeze damage protection
  • Manual Reset capillary type limit provides high temperature regulation and is rated for 6,000 cycles of service
  • 24v transformer and contactor
  • Pressure relief valve with cintered metal mesh flame arrestor
  • 14 gauge steel cabinet with epoxy powder coated finish contains heater core, motor, and fan assembly
  • Narrow gap safety fan guard shields all moving parts
  • Adjustable louvers allow directional control of air
  • Box lugs furnished for field connections within approved enclosure
  • Units cannot be operated in room ambients exceeding 104°F (40° C)
  • ABS type approved
  • For Class I, Group C & D, Division 1 & 2 and Class II, Groups E, F & G, Divisions 1 & 2. Temperature Code T3B 165°C (329°F)
Specifications for Individual Models:
  • Model HLA 12-208160-3.0-24: 208 Volt / 1 Phase / 16.3 Amp Motor
  • Model HLA 12-208360-3.0-24: 208 Volt / 3 Phase / 9.8 Amp Motor
  • Model HLA 12-240160-3.0-24: 240 Volt / 1 Phase / 14.8 Amp Motor
  • Model HLA 12-240360-3.0-24: 240 Volt / 3 Phase / 8.6 Amp Motor
  • Model HLA 12-480360-3.0-24: 480 Volt / 3 Phase / 4.3 Amp Motor
Optional Factory Installed Accessories:
  • In Built Single Pole Thermostat 50°-90° F
  • Disconnect Switch
  • Pilot Light
Hazardous Zone Classes and Definitions:

Hazardous Zone Classes and Definitions

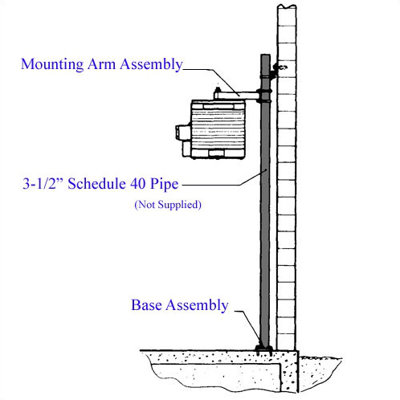

Pipe Mounting Kit

Features:
  • Model Number: HLPM37
  • For use with TPI Hazardous Location Fan Forced Unit Heaters
  • Includes arm mounting assembly, base assembly, and wall assembly
  • Particularly useful in buildings with insufficient strength to use other types of mounts
  • Requires 3 1/2" steel pipe 4" O.D. (not supplied)
Hanging Mount Kit

Features:
  • Model Number: HLHM
  • For use with all TPI Hazardous Location Fan Forced Unit Heaters
  • Simple and economical if adequate overhead structure exists
  • Includes mounting assembly pieces
  • Requires 1/2" steel pipe, cut and threaded (not supplied)

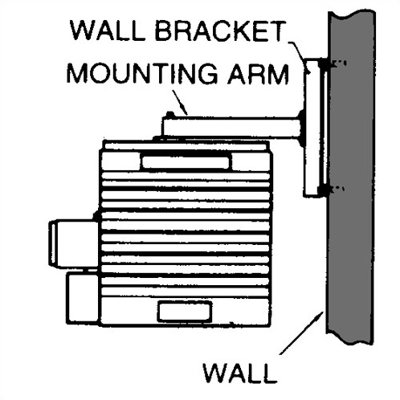

Wall Mount Kit

Features:
  • Model Number: HLWM37
  • For use with TPI Hazardous Location Fan Forced Unit Heaters
  • Ideal for buildings that have substantial walls
  • Arm can also be bolted directly to structural steel
  • Includes mounting assembly pieces
  • Requires 1/2" steel pipe, cut and threaded (not supplied)
See something odd? Report it here.

Shipping Info

Free Shipping!
Ships to:
Delivery Estimates
Ships via Truck Freight Delivery (Learn More)
Weight, Dimensions & Additional Features
Item: Dimensions: Weight:
Hazardous Location Fan Forced Unit Heater17.75" H x 19.75 - 20.625" W x 22.375" D167 lbs
Hanging Mount KitUnavailable5 lbs
Pipe Mounting KitUnavailable37 lbs
Wall Mount KitUnavailable27 lbs

Additional Features
Adjustable Thermostat:Yes
Power Source:Electric
Product Category:Space Heaters
Type Options:Fan Forced Heaters, Hazardous Location Heaters
Use Options:Construction Heaters, Industrial Space Heaters, Warehouse Heaters
