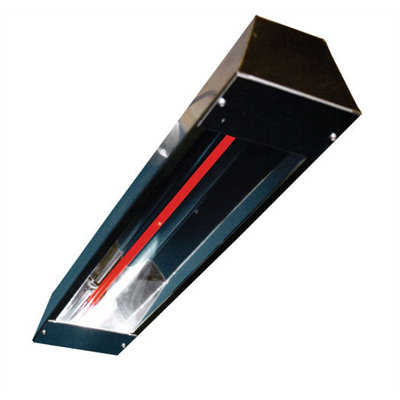

TPI Electric Patio Heater

The Outdoor Rated Stainless Steel Infrared Heater is a great way to add warmth to any industrial space during those cold days and nights! Featuring an instant, high intensity radiant heat using a single specialized Ruby ''Red'' infrared heating element for glare protection, stainless steel housing with Coilzak aluminum reflector for optimum reflectivity and corrosion resistance, and 60 degree symmetrical heat pattern for even distribution of heat. Great outdoor spot heating for patio areas, bus shelters, airport terminals, etc. Ideal for indoor spot heating over workstations, lobby entrances, vestibule areas, process applications for parts, and many more. To achieve optimum infrared heating results, mount each heater 6' apart at 8' to 9' high and tilt the heaters 15 degrees inwards towards target. Supplied mounting plate allows unit to operate in a horizontal position or can be mounted at a 45 degree angle using standard pipe nipple (not supplied).

Features:

• Stainless steel housing with Coilzak aluminum reflector for optimum reflectivity and corrosion resistance
• Instant, high-intensity radiant heat using a single specialized ruby red infrared heating element for glare protection
• Compact single element housing design
• 60 degree symmetrical heat pattern for even distribution of heat
• Supplied mounting plate allows unit to operate in a horizontal position or can be mounted in a 45 degree angle using standard pipe nipple (not supplied)
• Mounting clearance requirements: 6" from ceiling, 24" from vertical surface, 72" from face of heater to combustible surface
• Direct wire and single phase operation heating element and mounting plate included
• Distressed: No
• Heat Source: Electric

Specifications:

• UL / C-UL listed for indoor and outdoor spot heating, includes totally exposed outdoor applications

Dimensions:

• Recommended mounting height: 8' to 12'
• Overall dimensions: 24" H x 5.375" W x 4.5" D
• Overall Product Weight: 5 lbs
