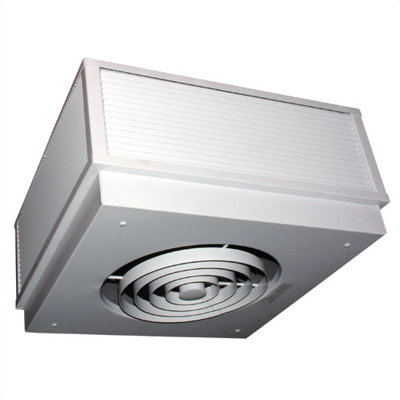

TPI Commercial Surface Mounted 10,200 BTU Ceiling Heater

The Commercial Recess Mounted Ceiling Heater is a great way to add warmth to any office or industrial space! Featuring a white powder coated 20 ga. grill and enclosed steel fin sheath element, the commercial recess model is safe and easy to use. The 1300 RPM propeller style fan blade projects an airflow of up to 425 CFM to allow for even heat distribution. The entire unit also features a radial diffuser and reset thermal limit.

Please note, this heater requires direct wire installation by an electrician

Features

• White powder coated 20 ga. grill
• Radial diffuser
• Enclosed steel fin sheath element
• Propellor style fan blade: 1300 RPM / 425 CFM
• Heat capacity: 10,200 btu
• Temperature rise: 22 degrees F
• Net Weight: 50 lbs
• **208v / 240v / 277v units have manual reset thermal limit
• **480v unit has automatic reset thermal limit

Specifications

• Phase 1 / 208v / 14.4 amps / 3 kw
• Phase 1 / 240v / 12.5 amps / 3 kw
• Phase 1 / 277v / 10.8 amps / 3 kw
• Phase 1 / 480v / 6.3 amps / 3 kw ( 24v control transformer & relay )
