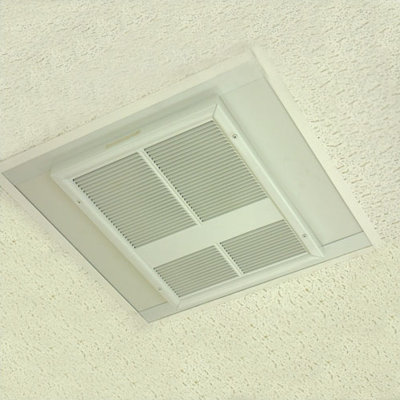

TPI Commercial 3380 Series ( 240v ) Ceiling Heater

The Commercial Ceiling Heater is a great way to add warmth to any office or industrial space! Featuring a white powder coated 18 ga. grill and enclosed steel block fin element, the commercial 3380 series model is safe and easy to use. The 700 RPM vane axial fan blade projects an airflow of up to 175 CFM to allow for even heat distribution. To ensure added safety, this efficient heater also features an automatic reset thermal limit, disconnect switch, and fan purge circuit. Approved for recess, surface, and T-bar mounting.

Please note, this heater requires direct wire installation by an electrician

Features

• White powder coated 18 ga. grill
• Automatic reset thermal limit
• Steel block fin element
• Disconnect switch & fan purge circuit
• Vane axial fan blade: 700 RPM / 175 CFM
• Phase 1
• Grill dimensions: 20.14 " H x 15.38 " W
• Net Weight: 22 lbs

Specifications

• 6,826 btu / 8.3 amps / 2.0 kw
• 10,200 btu / 12.5 amps / 3.0 kw
• 13,600 btu / 16.8 amps / 4.0 kw
• 16,382 btu / 20.0 amps / 4.8 kw ( Fan: 900 RPM / 200 CFM )
