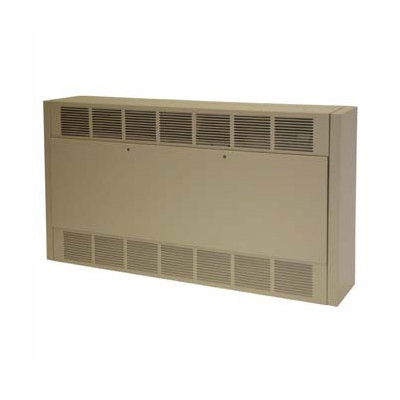

TPI 33" L 5/3KW Cabinet Heater 2 Speed with Voltage and Accessory Options

For commercial and institutional application such as stores, schools, offices, transportation terminals, churches, entrance ways. Units can be wall or ceiling mounted, surface, semi-recessed or fully-recessed.

Features:

• In-Built thermostat - 50-90°F range that can be bypassed to use remote wall thermostat
• 24v transformer and relay
• Disconnect switch
• Replaceable dust filter
• Two speed (1,550 / 1,400 rpm), shaded pole, resilient mounted, permanently lubricated fan motors
• Heat output and fan speeds controlled independently
• Beige powder coated finish on 18 ga. steel housing - 9.5" Deep x 25" High
• Steel sheath finned tubular elements
• Easily removable fin and element decks for simplified maintenance
• Full length capillary automatic reset thermal protection with secondary manual reset

Applications:

• For commercial and institutional application such as stores, schools, offices, transportation terminals, churches, entrance ways.

Specifications:

• Heater Length: 33"
• Kilowatts:
  • Low: 3 KW
  • High: 5 KW
• BTU's:
  • Low: 10,239 BTU's
  • High: 17,065 BTU's
• Amps:
  • low: 15.4/9.2 AMP's
  • High: 25/17.6 AMPS
• CFM:
  • low: 230 CFM
  • High: 250 CFM
• Volts: 208
• Phase: 3
• Weight: 99 lbs
• Overall Dimensions: 25" H x 33" W x 9" D

33" Duct Collar

• The same model is used for the inlet or outlet. If duct collars are required for both inlet & outlet then 2 must be ordered
• Size: 33"

33" Recess Trim Frame

• Recessing Trim Frame should be ordered to "trim-out" any recessed or semi-recessed installation.
• Size: 33"
