TPI 3-Lamp Electric Patio Heater

(View all from TPI)

FREE 2-Day Delivery
$1,163.00 51% Off

Rewards: Get 3% Back ?

Free Shipping
- Order in the next and have this item delivered free by ! More

Buying in bulk? Discounts may apply. Click here.

Product Details
Product Q&A
Shipping & Returns

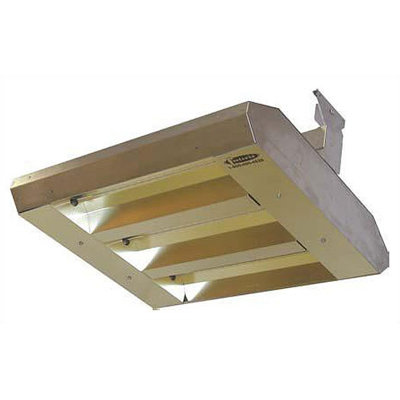

TPI 3-Lamp Electric Patio Heater

The Mul-T-Mount 16,382 BTU's 3-Lamp Infrared Heater is a great way to add warmth to any industrial space during those cold days and nights! Features clear quartz heating elements for direct wire connection, 20-gauge stainless steel housing, and gold anodized one-piece reflector. Overhead infrared heaters for snow and ice control, outdoor spot heating and all indoor heating applications. Please note, this heater requires direct wire installation by an electrician.


  • Three clear quartz lamps included
  • Clear quartz lamp heating elements for direct wire connection
  • Gold anodized one-piece reflector
  • 20-gauge stainless steel housing
  • Built-in surface mounting bracket allows for fixture adjustment up to a 40 degree horizontal tilt
  • Operate on either single or three phase wiring
  • Provide maximum heating in less than 60 seconds
  • Unit provides the ability of staging and zone control flexibility
  • Provide 50% higher watt densities than two element units
  • Gold anodized aluminum reflectors and end caps provide maximum reflectivity and longevity for a variety of applications

Product Details:

  • Heat Source: Electric
  • BTU Output: 16382 BTUs
  • Safety Shut Off: No
  • Portable: No
  • Indoor Use: Yes


  • Light Type: Infrared


  • Overall: 24" H x 21.5" W x 10.875" D
  • Overall Product Weight: 25lbs

TPI 3-Lamp Electric Patio Heater

Weights & Dimensions

  • Overall: 24" H x 21.5" W x 10.875" D
  • Overall Product Weight: 25lbs


Product Type: Hanging heaterFinish: Silver
Material: Aluminum; Stainless SteelHardware Material: Metal
Suggested Mounting Height: 264 InchesHeat Source: Electric
BTU Output: 16382 BTUsWattage: 4800 Watts (W)
Safety Shut Off: NoWeather Resistant: Yes
  • Weather Resistant Details: Stainless steel-listed for suspended, totally exposed (outdoor), high-bay (indoor) comfort heating and exterior snow and ice control applications.
Water Resistant: Yes
  • Water Resistant Details: Stainless steel-rated for totally exposed outdoor applications.
Portable: No
Wheels: NoLighted: Yes
  • Light Type: Infrared
Remote Control: NoIndoor Use: Yes
Commercial Use: YesEco-Friendly: No
Country of Manufacture: China


Assembly Required: Yes
  • Tools Needed for Assembly: Drill/driver for pilot holes and Phillips-drive bits for mounting fasteners.
Additional Parts Required: Yes
  • Parts Needed: Suspension mounting hardware included; recessed or wall mount will require additional accessories.


Product Warranty: TPI Corporation provides a limited warranty of materials and workmanship for a period of ten (10) years for 198 Portable and Baseboard Element products, two (2) years for Thermostats and Controls, and twelve (12) months for all other products, with the warranty period commencing on the original date of purchase.


ETL Certified: YesCSA Certified: No

About the Manufacturer

TPI Corporation process heating and specialty lighting equipment for commercial and industrial applications including automotive, textile and medical industries. In addition, they provide air ventilation products for commercial and industrial applications to include Ceiling-Mount Ventilation Fans, Air Curtains, Roofmount Powered Domes, Gable-mount, Attic Ventilators and Commercial/Industrial Fans.
