Product Details

Features:

18 ga. steel cabinet
Powder coated finish
Control compartment housing a master terminal board and a hinged and latched access door
Simplified wiring, installation, and maintenance
Spiral fin steel heating element
Continuously brazed steel fins formed to allow side draw through air flow
100kW model comes equipped with manual reset type limit to de-energize the heater, should an over-temperature situation occur
Totally enclosed, 1-speed, 1-phase, thermally protected motor with ball bearings
Fan over-ride purges unit of residual heat at shutdown
Louvers are indivudually adjustable for directional control of air flow up to 15° from straight horizontal

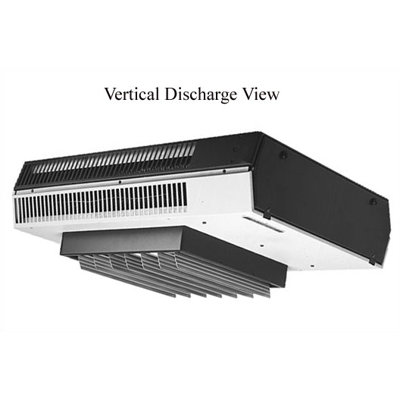

Optional diffusers available for down flow (vertical discharge) applications
Optional low voltage and line voltage thermostats available with an adjustable temperature range of 50°-90°F
Designed for up to 4 stage heating operation
Unit Heater can be mounted for horizontal or vertical discharge

Specifications:

Model: P3P51100CA1
kW: 100
BTU/hour: 341
Volts: 480
Phase: 3
Amps: 120.4
Control Voltage: 24
Temp Rise: 68°F
Air Throw: 65 ft.
CFM: 5,000
Recommended Horizontal Mounting Height: 22 ft.
Recommended Vertical Mounting Height: 40 ft.

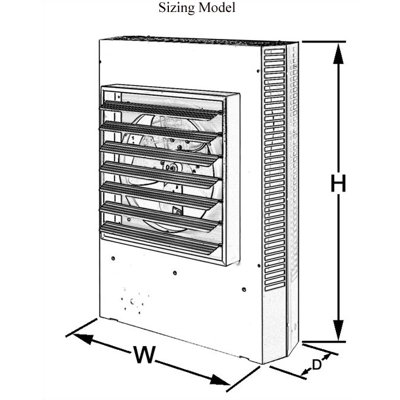

Dimensions: 39.5" H x 37.5" W x 18.5" D
Net Weight: 202 lbs

See something odd? Report it here.

Thanks for helping us be 100% accurate.

Shipping Info

Free Shipping!

Ships to:

Delivery Estimates

Ships via Truck Freight Delivery ()

Weight, Dimensions & Additional Features

Item:	Dimensions:	Weight:
100 kW Horizontal/Vertical Fan Forced Heater w/ 480V Motor	39.5" H x 37.5" W x 18.5" D	202 lbs

Additional Features

Adjustable Thermostat:	Yes
Power Source:	Electric
Product Category:	Space Heaters
Type:	Fan Forced Heaters
Use Options:	Ceiling Heaters, Industrial Space Heaters, Wall Heaters
