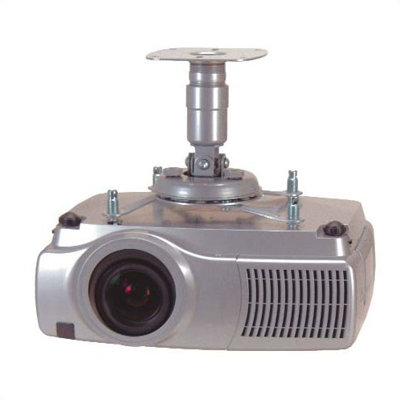

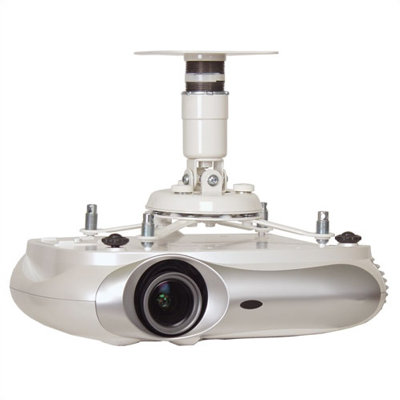

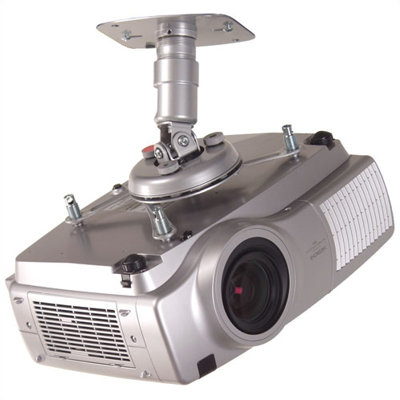

Premier Mounts PBC Universal Projector Mount

This universal mount features a flexible mounting system that can be used with almost any projector models, and it has the versatility to attach to nearly any ceiling or wall.The mounting interface features four double-jointed support arms that allow flexible positioning to reach almost any mounting point of the projector. Each arm can be precisely positioned to avoid covering important projector ventilation and access points used for lamp and air filter replacement. This minimizes heat build-up and maximizes lamp life. Its robust construction allows the mount to positively hold the projector fixed at nearly any angle. Unique leveling barrels allow the PBC-UMS to adapt to virtually any projector base, no matter how oddly shaped, to maintain a level installation.Like the PBC mounts, the universal mounts tilt, roll, and rotation can be adjusted independently of one another, compared to the clumsier adjustments needed for ball-and-socket mounts. Additionally, it comes with a standard pipe coupling rather than the adjustable channel and ceiling plate of the PBC series. This allows the projector to be mounted at a fixed height of any distance from the ceiling, depending on the length of pipe used. This option also works well when installing a projector as a retrofit to existing schedule 40 steel pipe.


  • Includes ceiling plate
  • 360° rotation with more than +/-20° tilt and roll
  • Unique double-jointed support arms can be adapted to virtually any projector
  • Uses standard 1-1/2”schedule 40 pipe (sold separately)
  • Positive locking in any set position
  • Quick release system for easy for easy projector mounting and removal
  • Weight capacity: 25 lbs
  • A coupler (extension connector) is not needed if adding an extension to this.
  • Dark Charcoal Gray (Sinterflex), Silver, or White finish
  • Comes with manufacturer's limited lifetime


  • Overall: 7.08" H x 18.95" W x 18.95" D
  • Overall Product Weight: 7.4lbs

Premier Mounts PBC Universal Projector Mount

Weights & Dimensions

  • Overall: 7.08" H x 18.95" W x 18.95" D
  • Overall Product Weight: 7.4lbs


Mount Type: Ceiling mount; Wall mountPrimary Material: Metal
Adjustable Height: NoArticulating Arm Included: No
Quick Release: NoCable Management: No
Universal Mount: YesDrop Mount: No
Ceiling Recessed: NoMotorized: No
Swivel: YesTilt: No
Weight Capacity: 25 PoundsCountry of Manufacture: Taiwan, Province of China


VESA Compliant: No
