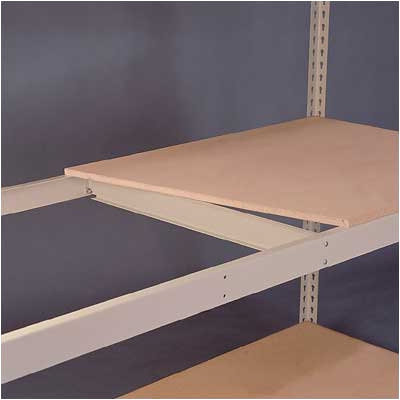

Penco 72" & 96" Wide Double Rivet Units (with Center Support) - 5 Shelf Starter Unit, w/ Channel Beams

RivetRite is engineered to provide safe, economical storage of virtually any type of hand loaded material. Structural integrity is ensured by a rigid boltless connection between beams and posts.

Starter and add-on units are combined to form economical rows of shelving. Each add-on unit includes a pair of tee posts which are used in common between units. This reduces assembly time and the number of parts required. Begin each row with two angle posts from the starter unit and join the desired number of add-on units to complete the row. Finish the last unit with a pair of angle posts from the starter unit. [See related products].

Particle board is not included with unit and must be ordered separately. [See related products].

Features:

5 shelves

3" x 1" channel is designed to provide maximum left to right stability and higher capacity than standard or heavy duty beams -- top flange has holes for fastening decking

Center support to provide front-to-rear support for shelf deck and provides added stability to beams

Easy assembly w/o special tools -- all you need is a rubber mallet to assemble most units

Access to contents from all four sides -- no braces to get in the way

Shelves adjustable on 1 1/2" centers -- allows you to custom design unit to fit your load size

Finished in attractive 723 light putty color -- baked on for permanence

Add-on units are available [see related products]

Double Rivet Starter Units w/ Center Supports Consist of:

• 4 standard angle posts (up to and including 144" high)
• 2 double rivet angle beams left to right per shelf level
• 2 double rivet angle beams front to back per shelf level
• 1 center support per shelf level except for 96" wide units which have 2 per level

Weight Capacity of Steel Support Beams for Evenly Distributed Loads [Dimensions W x D x H]:

• 72" Wide Units = 1850 lbs
• 96" Wide Units = 1400 lbs

Notes:

• Partical board is not part of the QuickShip program
• Order particle board separately [See related products]

Installation Services Now Available! Call for details. Note: This quality item is custom made for your order. Unfortunately, this means that orders cannot be cancelled or returned once placed, so please call our trained staff with any questions you may have prior to ordering - we will ensure that you get exactly what you need.
