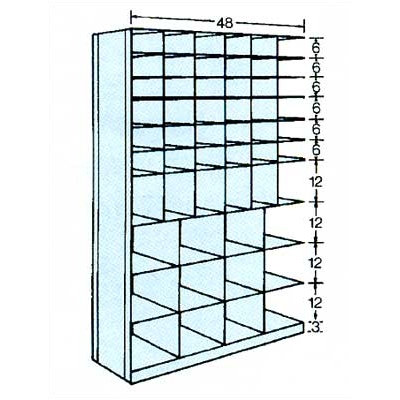

Penco 48" Wide Clipper Bin Unit - 54 Openings

Clipper Shelving Bin Units are closed units with Heavy Duty Hi-Performance shelves, in various quantities, plus dividers and bin fronts as required.

Use a Closed Basic Clipper Bin Unit to start a single unit or a row of shelving. Add additional Clipper Basic Units to add to row. To end row or single unit, finish the unit with a Closed End Kit. [See related products].

Features:

• 54 openings
• Box post at front
• Offset angle posts at rear
• Front and rear flanges of each shelf utilize box beam construction for extra strength -- no reinforcing necessary
• Sides are double flanged
• Flanges are welded to the underside of shelf on 3" centers
• Corners are lapped and welded
• Four Clipper Compression Clips included with each shelf -- shelf is held tight against post
• All clipper shelving is painted gray

Specifications:

• 24 openings 7 1/2" W x 6" H

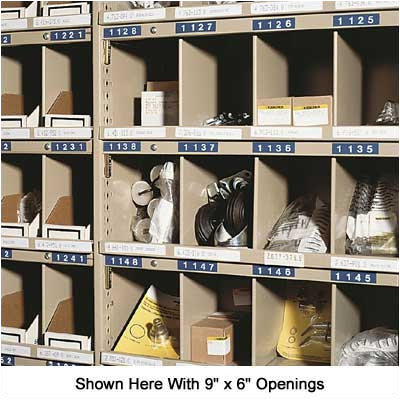

• 12 openings 9" W x 6" H
• 4 openings 7 1/2" W x 12" H
• 2 openings 9" W x 12" H
• 12 openings 12" W x 12" H
• Box post is roll formed, Dimensions: 3/4" W x 2 7/16" D
• Offset angle post is roll formed, Dimensions: 1 1/8" W x 2 1/2" D
• Side & back panels are 24 gauge steel
• Sway braces are 12 gauge steel
• Shelves are 18 gauge steel with 1 3/16" vertical face on all four sides

Clipper Bin Basic Unit includes:

• 1 front box post
• 2 rear offset angle posts
• Side and back panels
• Heavy duty hi-performance shelves
• Dividers and bin fronts as required
• Hardware

Weight Capacity per Shelf for Evenly Distributed Loads [Dimensions W x D x H]:

• 48" x 12" x 87" = 500 lbs
• 48" x 18" x 87" = 500 lbs
• 48" x 24" x 87" = 530 lbs

Notes:

• Bin widths are nominal -- They are measured from the hole centers on the shelves, not the vertical bead of the dividers
• Order one closed ending kit to end each row

Installation Services Now Available! Call for details. Note: This quality item is custom made for your order. Unfortunately, this means that orders cannot be cancelled or returned once placed, so please call our trained staff with any questions you may have prior to ordering - we will ensure that you get exactly what you need.
