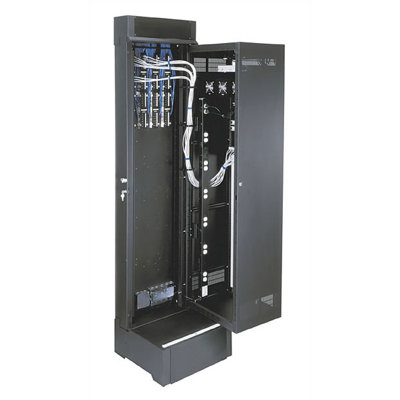

Middle Atlantic SR Series Pivoting Wall Mount Rack, 28" D
(View all from Middle Atlantic
)
Customers Also Viewed
Product Details
Specify an SR when access to rear equipment connections is essential. This pivoting rack is uniquely designed to mount to the wall with the rack's entire weight supported by the door.
Structural Features:
- Tool-free Quick-Mount system for easy mounting of the center section to the backpan on the jobsite
- Zero Clearance Latch option allows side-by-side or corner mounting
- Trim panel accommodates slim power to save space
- Pivots 90 degrees on floor base for access to rear equipment connections
- 500 lbs. weight capacity
- 8 1/4" bottom cable entry platform bears the weight of the rack while a low-friction wear-strip facilitates opening
- Finished in a durable black textured powder coat
Thermal Management:
- Center section features laser knowckouts for two 4 1/2" fans, top and bottom
Cable Management:
- Abundant cable tie-points located throughout the rack and on the backpan to facilitate cable management
- UHF/VHF, 2 1/2", 3", 4", 4" X 8", UCP connector and Wiremold 4000 knockouts provided for cable management
- Laser knockouts on both sides of bottom cable entry platform allow simplified cable pass-through with an attractive shroud to conceal conduit stubs and low voltage cabling drops
- Large opening in the backpan provides a 12 1/2" X 12 1/2" pull-box sized opening for cable passage
Time Saving:
- Tool-Free Quick-Mount system for easy mounting of the center section to the backpan on the jobsite
- Standard adjustable 11-gauge, 10-32 threaded rackrail with marked rackspace increments to speed equipment mounting
Code Compliancy:
- Grounding/bonding stud in top and bottom of center section and backpan facilitates proper grounding and bonding of electronic equipment, as per NEBS and NEC standards
- UL Listed in the US and Canada
SR Series Pivoting Rack SpecificationsShipping Info
Weight, Dimensions & Additional Features
| Item: | Dimensions: | Weight: |
|---|---|---|
| SR Series Pivoting Wall Mount Rack, 28" D | 90.75 - 101.25" H x 28" D | 227 - 273 lbs |
Additional Features
| Application Options: | Commercial, IT/Data Centers |
| Electric Outlet: | No |
| Mounting Type: | 10-32 Threaded |
| Product Category: | Rackmounts |
| Style Options: | Stand-Alone, Swing-Frame |
| Type Options: | Rack Enclosure, Wall Mount Rack |
| Weight Capacity: | 301-700 Lbs. |
Questions & Answers
Have a question?
We want to know
We're sorry, we have no FAQs to display.
back to top
Reviews
See Similar Products
▪ View more products from: Middle Atlantic
▪ View the full collection: Middle Atlantic SR Series Collection
▪ View more: All Rack Mounts
▪ View the full collection: Middle Atlantic SR Series Collection
▪ View more: All Rack Mounts
Reference
OUR SKU # DF2803
This item is also sometimes listed under the following manufacturer numbers: SR-40-28, SR-46-28
