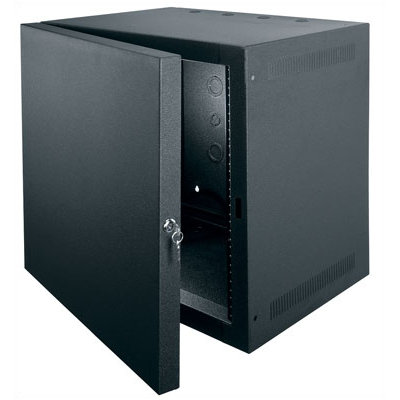

Middle Atlantic SBX Series Wall Mount Cabinet

Specify an SBX when seeking an economical solution for wall mounting smaller systems.

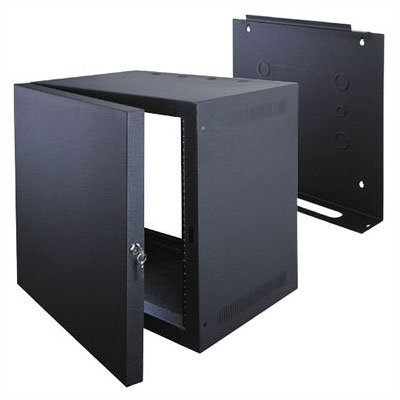

  • Removable backpan simplified installation and provides easy access to equipment connections
  • Locking front door swings open a full 180 degrees on a virtually indestructible hinge for rugged security and unobtrusive accessibility
  • Deep rail-to-door clearance ratio provides flexibility not found in flush-mount door designs
  • Standard 11-gauge, 10-32 threaded rackrail with marked rackspace increments to speed equipment mounting
  • Ventilation slots at top and bottom of each side promote Passive thermal management
  • Electrical knockouts at top, bottom and rear facilitate cable management
  • Fully welded center section utilizes 18-gauge steel, backpan constructed from 14-gauge steel
  • Laser and electrical knockouts at top, bottom, and rear for cable pass-through


10U Rack Spaces

  • Overall: 20.6" H x 22.3" W x 17" D
  • Overall Product Weight: 50lbs

7U Rack Spaces

  • Overall: 15.6" H x 22.3" W x 17" D
  • Overall Product Weight: 45.97lbs

Middle Atlantic SBX Series Wall Mount Cabinet

Additional Documents

SBX Series Specifications

Weights & Dimensions

10U Rack Spaces

  • Overall: 20.6" H x 22.3" W x 17" D
  • Interior Depth - Front to Back: 14.8"
  • Overall Product Weight: 50lbs

7U Rack Spaces

  • Overall: 15.6" H x 22.3" W x 17" D
  • Interior Depth - Front to Back: 14.8"
  • Overall Product Weight: 45.97lbs

Additional Weights & Dimensions

  • Electrical knockouts: 0.5'', 0.75''


Product Type: Wall mount rackMounting Type: 10-32 threaded
Frame Type: SwingFinish: Black
Powder Coated Finish: YesPrimary Material: Metal
  • Primary Material Details: Steel
Door Included: Yes
  • Door Type: Solid
  • Number of Doors: 1
Wheels Included: No
Thermal Management: PassiveSwivel: No
Slide-Out: NoStand-Alone: Yes
Weight Capacity: 100 PoundsCommercial Use: Yes
Country of Manufacture: United States

About the Manufacturer

Middle Atlantic Products, Inc., an ISO 9001:2000 registered company, is a manufacturer of engineered mounting solutions. Their customer-first philosophy places special emphasis on quality, service, and meeting the everyday working needs of end-users. All of their products are designed from the installer’s point of view. From thermal considerations and built-in cable management on our racks and enclosures to pre-installed washers on our rack screws they look at all aspects of an installation to find ways to save time and simplify the job.

Middle Atlantic's customer-first philosophy doesn’t stop with their products. They have a fleet of regional delivery trucks that are based out of their New Jersey, Illinois and California facilities that deliver products throughout the majority of the country. In addition, Middle Atlantic's demonstration vehicles are always on the road displaying their products and providing a hands-on look at the unique features and benefits. RackTools™, which is a free layout and design package that they have developed, makes it easy to design your racks and enclosures and also generate Purchase Orders and Quotes effortlessly.

Founded in 1979 by President Bob Schluter, the firm maintains manufacturing and administrative facilities in Fairfield, NJ. At the heart of Middle Atlantic's technical prowess lie manufacturing capabilities led by laser-fabrication cells which produce smooth edges that are friendly to both cables and contactors hands and arms, automated forming lines, robots and high-speed turret presses that provide quick throughput to allow us to ship from stock . Complementing this formidable array of sophisticated machinery is a state-of-the-art environmentally friendly powder coat line that produces a scratch and corrosion resistant finish, as well as a variety of automated support equipment including CNC spot welders. Middle Atlantic's extensive selection of standard products includes steel rack enclosures, monitoring consoles, data cabling management products, audio and video studio furniture, power distribution products and related accessories.

Middle Atlantic SBX Series Wall Mount Cabinet

Questions & Answers (1)


“The space where I am looking to put this is about 20 inches wide and I need to know if this will fit.” asked by Byron

"Hi Byron, If you need something that is about 20 inches wide, you may want to look through the rest of our catalog, since this is 22.3 inches wide." Will from Wayfair

Still have questions about this product? We're here to help

When you buy a Middle Atlantic SBX Series Wall Mount Cabinet online from Wayfair Supply, we make it as easy as possible for you to find out when your product will be delivered. You can check on a delivery estimate for the Middle Atlantic Part #: SBX-XX here. If you have any questions about your purchase or any other Rackmounts product for sale our customer service representatives are available to help.Whether you just want to buy a Middle Atlantic SBX Series Wall Mount Cabinet or shop for your entire business, Wayfair Supply has everything you need.
See something odd? Report it here.

Customer Reviews

Tell Us What You Think!

Tell us what you think about the SBX Series Wall Mount Cabinet. It will help us provide you with better products in the future and help your fellow Wayfair shoppers make better purchases.

Write A Review
Average Overall Rating
(based on 1 reviews)

Clear All
5 star
4 star
3 star
2 star
1 star


from Fayetteville, NY – Verified Buyer

Very durable very thick metal. So secure I would highly recommend for anything you need locked down in an area that others have access.
