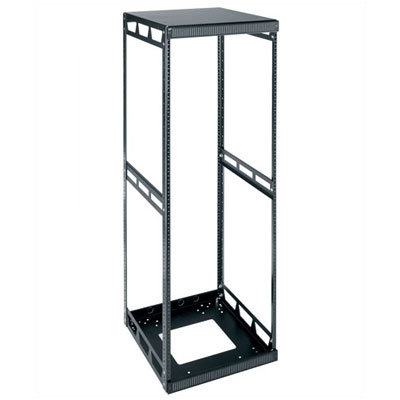

Middle Atlantic 26" D Slim 5 Series Equipment Rack Enclosure

(

View all from Middle Atlantic

)

VIEW ALL

Write the first review

$299.⁰⁷ (Varies with options)

List Price: $398.76

You Save:

$99.69 (25%)

rewards ?

Earn $8.97

Free Shipping!

Order in the next and have this item delivered Free by ! More

Delivery Estimates

Guaranteed Delivery By December 24th

Items with the 12/24 Guarantee will be delivered to addresses in the lower 48 states on or before December 24, 2012. This offer does not apply to Alaska, Hawaii, Puerto Rico or Canada.

Any purchase between now and 12/25 can be returned through 1/30.

Qty:

Clipbar

Facebook

Customers Also Viewed

Furman Sound Power Distributor

$49.00
Gator Cases 1U Sliding Shelf

$74.99
Gefen CAT5 9500HD Extender

$1,143.44
Middle Atlantic 22" D Maple Laminate Knock-Down Rack

From $291.17
Middle Atlantic Slim 5 Series Top Fan Kit

$111.66
Middle Atlantic Slim 5 Series 26" D Wood Side Panels

From $395.00
Middle Atlantic SCRK/SCQRK Series 15 Amp High Density Slim Power Strip, Extra-short 8 Outlet

From $76.50

Product Details

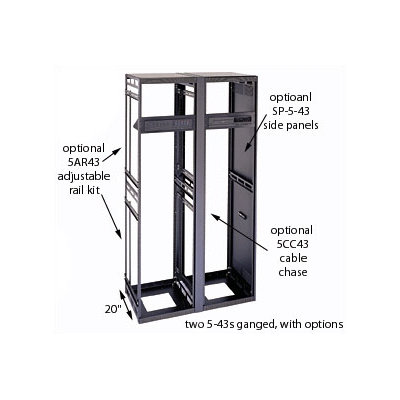

Specify a SLIM 5 when multiple racks need to be joined or when open sides are desirable. Ships knocked down to reduce shipping costs.

Structural Features:

Also available in a depth of 20"
Wide range of cabinet options makes the rack adaptable to a multitude of different installation environments

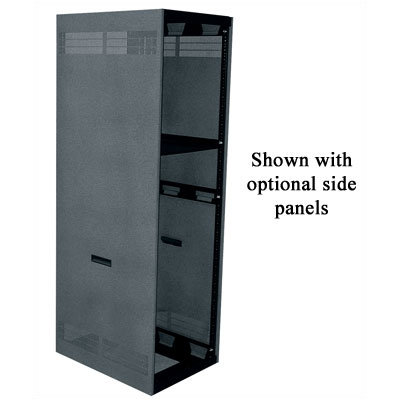

Optional removable side panels provide security while genuine oak wood side panel option provides aesthetic appeal for home and studio installations
Heavy-duty 15-gauge steel top and bottom contribute to unsurpassed rigidity of rack design
Standard front and rear fixed 11-gauge, 10-32 threaded rackrail with marked rackspace increments to speed equipment mounting
Optional casters can be bolted directly to bottom of rack or concealed in skirted base
Unique mechanically interlocking corner joint is central to each unit's exceptional strength and eases assembly
Unique bolt-together design allows for knock down shipment via PS
1/2" and 3/4" top and bottom electrical knockouts in rear of rack for cable pass-through
Top panel now includes 2 knockouts (accepts 2 fans)
UL listed in the US and Canada
Needs the PB-5A or PB-XS to mount power strips (sold separately)

Rackable Space	Racking Height	Overall Height	Weight Capacity	Useable Depth	Power Strip
14U	24 1/2''	28 1/4''	400 lbs.	26''	S
21U	36 3/4''	40 1/2''	400 lbs.	26''	S, XS
29U	50 3/4''	54 1/2''	400 lbs.	26''	M, S, XS
37U	64 3/4''	68 1/2''	400 lbs.	26''	L, M, S, XS
43U	75 1/4''	79''	400 lbs.	26''	L, M, S, XS

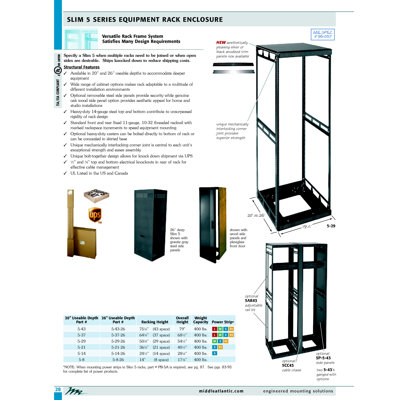

SLIM 5 Series Specifications

See something odd? Report it here.

Thanks for helping us be 100% accurate.

Shipping Info

Free Shipping!

Ships to:

Delivery Estimates

Ships via FedEx/UPS ()

Weight, Dimensions & Additional Features

Item:	Dimensions:	Weight:
26" D Slim 5 Series Equipment Rack Enclosure	17.75 - 79" H x 19.13" W x 26" D	30.13 - 55.88 Lbs

Additional Features

Application Options:	Commercial, IT/Data Centers
Electric Outlet:	No
Mounting Type:	10-32 Threaded
Product Category:	Rackmounts
Style Options:	Gangable, Stand-Alone
Type Options:	Rack Enclosure
Weight Capacity:	301-700 Lbs.
