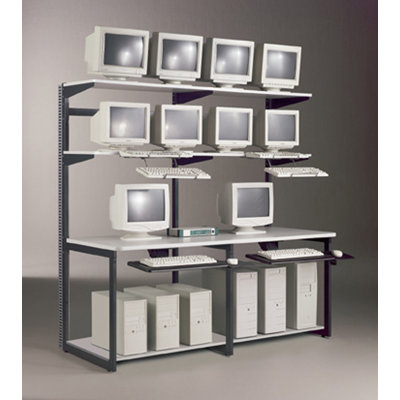

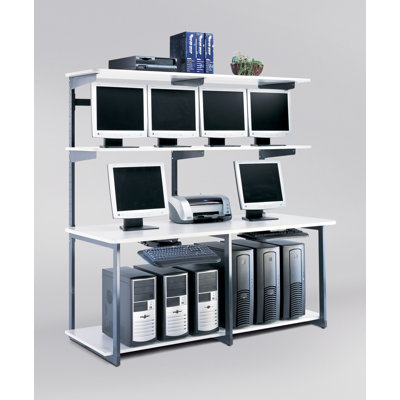

Mayline e-LAN Computer Racking Systems 72" W LAN Station

The e-LAN Racking System is an efficient, cost-effective solution for network storage. Five standard configurations meet virtually any need and ship complete in one carton. Stations feature spacious worksurfaces, full-width server shelves and multiple equipment shelves that adjust in 2" increments. Add or take away shelves as your needs change. Optional 2" diameter locking casters are easy to install and allow the stations to become mobile. Designed with everyday function and long-term durability in mind, e-LAN Racking Systems allow for easy access to equipment in front and back, and numerous options improve workflow and optimize space. Available with Ice Gray melamine surfaces and Graphite painted frames.

Features:

• Heavy-duty steel frame construction
• Three 3/4" melamine shelves with durable T-mold edging
• Shelves adjust in 2" increments
• One 1" thick melamine worksurface with bumper T-mold edging
• Self-edged server shelf accommodates multiple full-height towers
• Each shelf and worksurface supports 250 lbs
• Colors: Ice Gray surfaces with Graphite paint

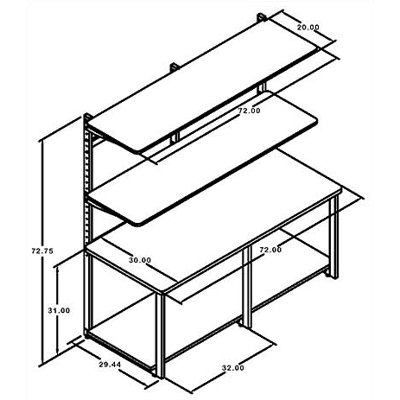

• Overall Dimensions: 72" W x 30" D x 72" H

Specifications:

• Frame:
  • 72" W frame
  • 1" x 2" x 72" H, 14-gauge cold-rolled steel tubing
  • Tested to 400 lbs per 24" frame without failure
  • Frames allow for shelf adjustment in 2" increments



• Shelves:
  • Two (2) 72" W x 20" D shelves
  • One (1) 72" W x 30" D worksurface
  • One (1) 71" W x 24 3/4" D server shelf
  • Thermally-fused melamine over 3/4" thick x 47 lb density particle board core
  • Adjustable in 2" increments
  • Lower shelf accommodates servers up to 27" H
  • Color: Ice Gray is standard



• Shelf Supports:
  • 14-gauge steel with two .250" diameter holes on 2" centers



• Work Surfaces:
  • Thermally-fused 1" thick melamine with 45 lb density particle board core
  • T-mold edging
  • Color: Ice Gray is standard



• Paint Finish:
  • High solids polyester, baked enamel finish
  • Color: Graphite is standard
