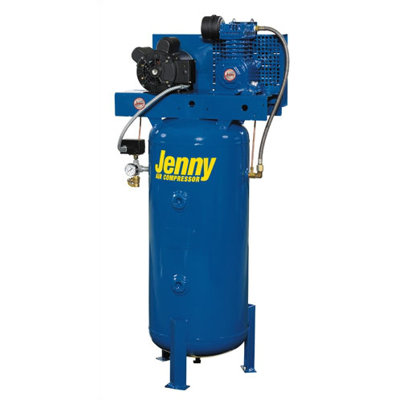

Jenny Products 60 Gallon 3 HP Single Stage Electric Stationary Air Compressor

This Electric Stationary Air Compressor is proudly made in Somerset, PA USA. It features a powder coated ASME-NB certified tank, totally enclosed heavy-duty belt guards and manual tank drains. This 60 Gallon 3 HP Stationary Air Compressor comes equipped with a pressure relief safety valve, tank gauge and is belt driven with a large flywheel for extra cooling and easier start-up. This Jenny Single Stage Electric Stationary Air Compressor comes splash lubricated with a limited 2-year warranty and filled with Jenny Synthetic Blue Compressor Pump Oil.

Features:

• Heavy-duty single stage cast iron compressor pump made in Somerset, PA USA
• Splash lubricated
• Belt driven with a large flywheel for extra cooling and easier start-up
• Unit comes filled with Jenny Synthetic Blue Compressor Pump Oil
• Oil Sight Glass
• Directional air shroud for reduced pump temperatures
• Totally enclosed heavy-duty belt guard
• Powder coated ASME certified receivers
• Protectively mounted fittings
• Manual tank drain
• Large canister intake filter with replaceable filter elements
• Tanks are powder coated and ASME certified
• Special unloading valves to assist in motor starting
• Tank gauge
• Pressure release safety valve

Options

• Voltage
• Vertical Tank
• Auto Tank Drain - air operated
• ASME - NB Tank Option
• Magnetic Starter
• Low Oil Level Switch (Magnetic Starter Required)
• Mass Code

Specifications:

• Engine: Electric
• Pump: GC
• Horse Power: 3 HP
• Tank Size: 60 Gallon
• Power Supply:
• 1 Phase: 230 Volt
• 3 Phase: 208, 230, 460 or 575 Volt
• CFM @ 125 PSI: 21.0 CFM
• Pump RPM: 770
• Del'd Air: 14.0
• Weight: 455 lbs
• Dimensions:
• Horizontal/Standard 41" H x 20" W x 49" D
• Vertical/Optional 70" H x 21 W x 28" D

2 year Limited Warranty:

• All compressors manufactured by Jenny are warranted to be free from defects in material and workmanship under normal use for a period of 2 years from the date or purchase by the original purchaser (initial user)
• Liability is limited to repair or replacement of material found defective, free of charge F.O.B. plant. Motors and engines are warranted to the extent of original manufacturer’s service facilities. Unauthorized repairs or replacements will not be subject to factory warranty
