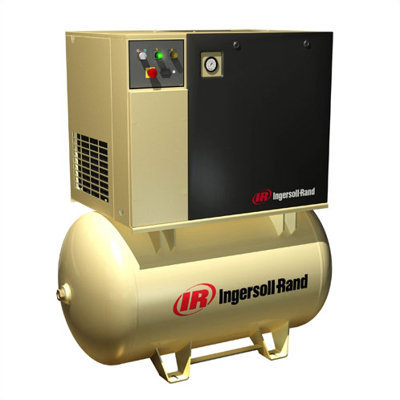

Ingersoll Rand 80 / 120 Gallon Rotary Screw Air Compressor, 15 HP, 125 PSI, 55 CFM

Boosting your company's profits was the main goal that Ingersoll-Rand had in mind when it designed the revolutionary UP-Series line of integrated rotary screw air solutions. The UP-Series is more than an integrated air system, it's a complete air solution designed to maximize the key drivers of profitability in today's business.

The rotary screw air compressor has become the most popular source of compressed air for industrial applications. A major reason is its simple compression concept. Air enters a sealed chamber where it is trapped between two contra-rotating rotors. As the rotors intermesh, they reduce the volume of trapped air and deliver it compressed to the proper pressure level. This simple compression concept, with continuous contact cooling, allows the rotary screw air compressor to operate with temperatures approximately one half that generated by a reciprocating compressor. This lower temperature enables the rotary screw air compressor to operate in a "fully loaded" continuous duty cycle 24 hours per day, 365 days per year, if necessary. Its ability to operate for extended periods of time makes the rotary compressor ideal for demanding industrial applications.

Features:

• Choice of 80 or 120 gallon tank
• Extra storage of 120 gallon tank helps in times where your demand exceeds normal operating conditions
• 120 gallon tank reduces the cycling of your air compressor, which reduces wear on the motor
• More Air For Your Money: Industry-leading performance delivers more air for less horsepower, saving thousands of dollars per year on energy
• Smart, Energy Efficient Controls: Eliminates the compressor from running unloaded by cycling the compressor on/off
• Installation Close to Point-of-Use: Whisper quiet operation allows for installation closer to point-of-use, reducing costs and ensuring a better & safer work environment
• Closely Maintained Pressure: Closely maintained discharge pressure avoids excessive pressure bands and increases downsteam tool and equipment life
• 70% Fewer Connections: Smart integration eliminates leaks and pressure drops maximizing reliability
• Compact Footprint Design: Small footprint frees up valuable floor space and reduces install costs
• Dual-Control Operation: Reliable and effective load/no-load control with automatic start and stop facility for maximum flexibility
• Poly-V Belt Drive: Premium drive system applies patented automatic tensioning to eliminate belt stretch and increase air output
• Advanced Cooling: A package pre-filter, efficient combination aftercooler with access to both sides for easy cleaning and top discharge to simplify ducting

Specifications:

• Model: UP6-15C-125
• Voltage: Varies with options, be sure to specify
• Horsepower: 15.0
• CFM Capacity: 55
• PSI: 125
• DBA: 69
• 80 Gallon Tank Dimensions: 53.6" L x 28.9" W x 60.7" H
• 120 Gallon Tank Dimensions: 74.7" L x 28.9" W x 60.7" H
• 80 Gallon Tank Weight: 925 lbs
• 120 Gallon Tank Weight: 960 lbs

Start Up Kit

Use of the Ultraplus lubricant from commission of the compressor extends the usual 1 year warranty on the pump itself to 2 years. Designed for 2,000 hours or approximately 1 year of operation. Must be purchased with Ingeroll Rand Air Compressor for warranty extension to apply.

Start Up Kit Features:

• Start Up Kit #: 38339297
• Five liters of Ultraplus rotary screw lubricant
• One replacement oil filter
• It is required for warranty purposes to top off oil and change the oil filter after 150 running hours
