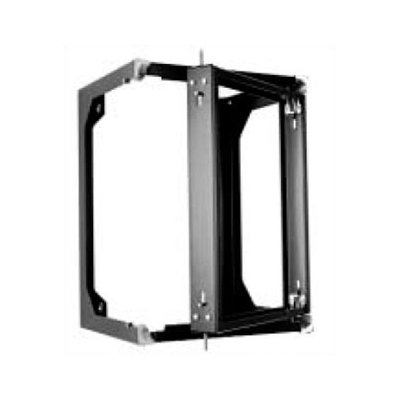

Chatsworth Standard Swing Gate Wall Rack

(

View all from Chatsworth

)

FREE 2-Day Delivery
  • Chatsworth Standard Swing Gate Wall Rack
  • Chatsworth Standard Swing Gate Wall Rack
VIEW ALL

267.65
 (Varies with options)

Free Shipping
Order in the next and have this item delivered free by ! More

Arrives for Christmas to Woodbridge, NJ 02108 (Change)

List Price:  $325.00
You Save: $57.35 (18%)
Rewards:  Get 3% Back ?

Qty:

Share:

Product Details
Weight & Dimensions
Specifications
Smaller rack mounts are great for components that you often use and keep out in the open. This particular rackmount is perfect for those situations. The Standard Swing Gate Wall Rack provides easy access to the rear of equipment, making it the ideal choice for supporting patch panels and switches.
Features:
  • Dual hinges opens to right or left, stopping in 90° position
  • EIA-310-D compliant
  • Universal alternating hole pattern
  • RMU spaces are marked
  • Supports 100 lbs of equipment in the open and closed position when securely mounted
  • Supports single-sided and double-side shelves
  • UL listed
  • Alternating Mounting Hole Pattern: 0.63'' - 0.63'' - 0.5''
  • Mounting Screws: 12'' - 24''
  • Includes (50) mounting screws; black painted units ship with black screws, clear units ship with zinc screws

Dimensions:

Tied To: Size
  • Overall Height - Top to Bottom: 24.5 Inches
  • Overall Height - Top to Bottom: 24.5 Inches
  • Overall Height - Top to Bottom: 24.5 Inches
  • Overall Height - Top to Bottom: 57.6 Inches
  • Overall Height - Top to Bottom: 57.6 Inches
  • Overall Height - Top to Bottom: 73.5 Inches
  • Overall Height - Top to Bottom: 73.5 Inches
  • Overall Height - Top to Bottom: 73.5 Inches
  • Overall Width - Side to Side: 19 Inches
  • Overall Width - Side to Side: 19 Inches
  • Overall Width - Side to Side: 19 Inches
  • Overall Width - Side to Side: 19 Inches
  • Overall Width - Side to Side: 19 Inches
  • Overall Width - Side to Side: 19 Inches
  • Overall Width - Side to Side: 19 Inches
  • Overall Width - Side to Side: 19 Inches
  • Overall Depth - Front to Back: 12 Inches
  • Overall Depth - Front to Back: 18 Inches
  • Overall Depth - Front to Back: 25 Inches
  • Overall Depth - Front to Back: 12 Inches
  • Overall Depth - Front to Back: 25 Inches
  • Overall Depth - Front to Back: 12 Inches
  • Overall Depth - Front to Back: 18 Inches
  • Overall Depth - Front to Back: 25 Inches
24.5" H x 19" W x 12" D
  • Overall Height - Top to Bottom: 24.5 Inches
  • Overall Width - Side to Side: 19 Inches
  • Overall Depth - Front to Back: 12 Inches
24.5" H x 19" W x 18" D
  • Overall Height - Top to Bottom: 24.5 Inches
  • Overall Width - Side to Side: 19 Inches
  • Overall Depth - Front to Back: 18 Inches
24.5" H x 19" W x 25" D
  • Overall Height - Top to Bottom: 24.5 Inches
  • Overall Width - Side to Side: 19 Inches
  • Overall Depth - Front to Back: 25 Inches
57.6" H x 19" W x 12" D
  • Overall Height - Top to Bottom: 57.6 Inches
  • Overall Width - Side to Side: 19 Inches
  • Overall Depth - Front to Back: 12 Inches
57.6" H x 19" W x 25" D
  • Overall Height - Top to Bottom: 57.6 Inches
  • Overall Width - Side to Side: 19 Inches
  • Overall Depth - Front to Back: 25 Inches
73.5" H x 19" W x 12" D
  • Overall Height - Top to Bottom: 73.5 Inches
  • Overall Width - Side to Side: 19 Inches
  • Overall Depth - Front to Back: 12 Inches
73.5" H x 19" W x 18" D
  • Overall Height - Top to Bottom: 73.5 Inches
  • Overall Width - Side to Side: 19 Inches
  • Overall Depth - Front to Back: 18 Inches
73.5" H x 19" W x 25" D
  • Overall Height - Top to Bottom: 73.5 Inches
  • Overall Width - Side to Side: 19 Inches
  • Overall Depth - Front to Back: 25 Inches
Show Additional Info
24.5" H x 19" W x 12" D Size
  • Overall Height - Top to Bottom: 24.5 Inches
  • Overall Width - Side to Side: 19 Inches
  • Overall Depth - Front to Back: 12 Inches
  • Interior Height - Top to Bottom: 21.7 Inches
  • Interior Width - Side to Side: 19 Inches
  • Interior Depth - Front to Back: 12 Inches
24.5" H x 19" W x 18" D Size
  • Overall Height - Top to Bottom: 24.5 Inches
  • Overall Width - Side to Side: 19 Inches
  • Overall Depth - Front to Back: 18 Inches
  • Interior Height - Top to Bottom: 21.7 Inches
  • Interior Width - Side to Side: 19 Inches
  • Interior Depth - Front to Back: 18 Inches
24.5" H x 19" W x 25" D Size
  • Overall Height - Top to Bottom: 24.5 Inches
  • Overall Width - Side to Side: 19 Inches
  • Overall Depth - Front to Back: 25 Inches
  • Interior Height - Top to Bottom: 53.6 Inches
  • Interior Width - Side to Side: 19 Inches
  • Interior Depth - Front to Back: 18 Inches
57.6" H x 19" W x 12" D Size
  • Overall Height - Top to Bottom: 57.6 Inches
  • Overall Width - Side to Side: 19 Inches
  • Overall Depth - Front to Back: 12 Inches
  • Interior Height - Top to Bottom: 53.6 Inches
  • Interior Width - Side to Side: 19 Inches
  • Interior Depth - Front to Back: 12 Inches
57.6" H x 19" W x 25" D Size
  • Overall Height - Top to Bottom: 57.6 Inches
  • Overall Width - Side to Side: 19 Inches
  • Overall Depth - Front to Back: 25 Inches
  • Interior Height - Top to Bottom: 78.10 Inches
  • Interior Width - Side to Side: 19 Inches
  • Interior Depth - Front to Back: 18 Inches
73.5" H x 19" W x 12" D Size
  • Overall Height - Top to Bottom: 73.5 Inches
  • Overall Width - Side to Side: 19 Inches
  • Overall Depth - Front to Back: 12 Inches
  • Interior Height - Top to Bottom: 53.6 Inches
  • Interior Width - Side to Side: 19 Inches
  • Interior Depth - Front to Back: 25 Inches
73.5" H x 19" W x 18" D Size
  • Overall Height - Top to Bottom: 73.5 Inches
  • Overall Width - Side to Side: 19 Inches
  • Overall Depth - Front to Back: 18 Inches
  • Interior Height - Top to Bottom: 78.10 Inches
  • Interior Width - Side to Side: 19 Inches
  • Interior Depth - Front to Back: 12 Inches
73.5" H x 19" W x 25" D Size
  • Overall Height - Top to Bottom: 73.5 Inches
  • Overall Width - Side to Side: 19 Inches
  • Overall Depth - Front to Back: 25 Inches
  • Interior Height - Top to Bottom: 78.10 Inches
  • Interior Width - Side to Side: 19 Inches
  • Interior Depth - Front to Back: 25 Inches
Product Type: Wall mount rackPrimary Material Details: Steel
Assembly Required: YesProduct Warranty: 1 year
Mounting Type: 12-24 threadedInstallation Required: Yes
Frame Type: SwingAdditional Parts Required: No
UL Listed: YescUL Listed: Yes
Primary Material: MetalEIA Compliant: Yes
Hardware Material: ZincNumber of Items Included: 1
Rust Resistant: YesCorrosion Resistant: Yes
Door Included: NoWheels Included: No
Fans Included: NoSwivel: Yes
Slide-Out: NoStand-Alone: No
Weight Capacity: 100 PoundsApplication: IT/Data centers
Commercial Use: Yes
See something odd? Report it here.

Shipping Info

Free Shipping
Ships to:
Ships via FedEx/UPS (Learn More)
Additional Documents
PDF

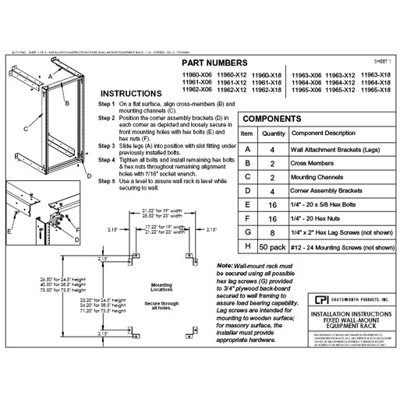

Instruction Sheet
