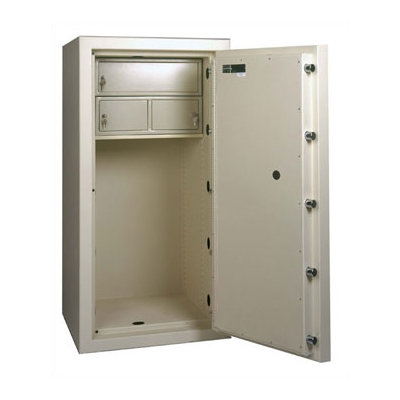

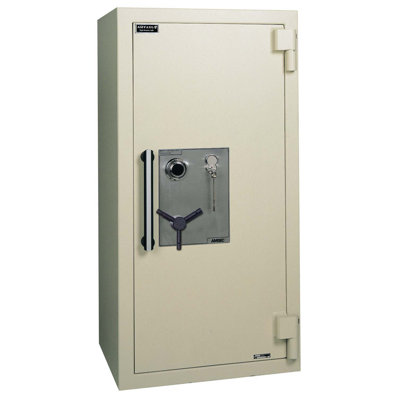

AMSEC TL-30 Fire Rated Composite Safes

Are you looking for that extra sense of security with all your prized belongings? If so, look no further because the combination of the TL-30 Fire Rated Composite Safes and the Electronic Safe Lock XL Retro-Fit Kit with Time Delay Mode, is the perfect pairing of items for maximum protection of your items. With the help of the included auxiliary battery pack, keeping your valuables safe for an extended period of time will be simple.

TL-30 Fire Rated Composite Safes Features:

• Overall thickness of 5.75", 2.75" defense barrier of outer and inner steel plates creates a single structure enclosing a unique, high density fire and burglary resistant composite material
• Defense barrier houses a proprietary amalgamation of nuggets and steel fibers to withstand concentrated attacks with the most sophisticated equipment used by burglars today
• Massive solid steel hard plate covering the entire door

Body:

• Amvault formed body has a total protective thickness of 3.5" enclosing a high density fire resistant composite material with nuggets and steel fibers
• Reinforced drill resistant door frame protects the door and each individual bolt chamber from severe side attacks
• Proprietary inner barrier protects against peeling attacks
• High strength adjustable shelves

Fire Endurance:

• Two hour, 350°F factory fire rating
• Tested at temperatures up to 1850°F

Locking Mechanism:

• Six to ten massive 1.5" diameter chrome plated solid steel locking bolts
• Each bolt moves deep into the body's protected bolt chambers
• Entire boltwork mechanism is also protected by a spring operated boltwork detent system
• Bolts stay in the retracted position when the door is opened and automatically engage when the door is closed
• Safes can be equipped with a three way active boltwork mechanism engaging the bolts horizontally and vertically into the body of the safe

Locks:

• U.L. listed Group II key changeable combination lock
• Massive drill shattering hard plate and two additional spring- loaded devices

Optional Auxiliary Key Lock:

• U.L. listed, high security auxiliary key lock is also available on all AMVAULT safes (except 21" W model)
• Lock is equipped with 2 keys and escutcheon plate
• Additional spring-loaded relock device protecting lock against punch attacks

Model	Product	Dimensions	Weight
CF1814	21.5" D AmVault TL-30	25" H x 21" W x 21.5" D	710
CF2518	25.5" D AmVault TL-30	32" H x 25" W x 25.5" D	1125
CF3524	42" H AmVault TL-30	42" H x 31" W x 29.5" D	1764
CF4524	52" H AmVault TL-30	52" H x 31" W x 29.5" D	2100
CF5524	62" H AmVault TL-30	62" H x 31" W x 29.5" D	2474
CF6528	72" H AmVault TL-30	72" H x 35" W x 29.5" D	3206
CF7236	32.5" D AmVault TL-30	79" H x 43" W x 32.5" D	4270

Electronic Safe Lock XL Retro-Fit Kit with Time Delay Mode Features:

• 1 User combination
• Factory reset code
• 9V battery in keypad
• 15 Minute penalty lockout
• Slam bolt for extra security also an option
• External A/C power
• Control Port: Turn the ESLXL20 on / off with an Access Manager, Alarm System or other device

Modes:

• Time delay mode, 1-99 minutes
• Multi-user mode, 8 user combinations
• Armored car time delay bypass mode
• Dual control mode
• External control mode

Aux. Battery Pack for ESL XL Locks Provides extended life on battery power for both ESL10XL and ESL20XL locks. One pack is required per lock. Battery pack mounts near lock on the inside of the safe door. (6 C-cell batteries not included in retrofit kit). **Note: Compatible with "Electronic Safe Lock XL Retro-Fit Kit" & "Electronic Safe Lock XL Retro-Fit Kit with Time Delay Mode" Only
